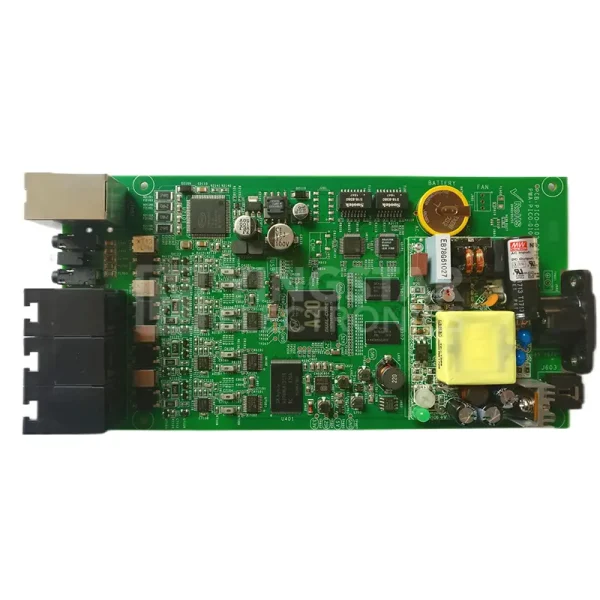

IP PBX PCB Assembly QX50
IP PBX PCB Assembly QX50
Supplier:Yingstar
Layers: 8
Application: IP PBX, 1 oz 8 Layers IP PBX PCB Assembly
PCB:FR-4 TG180, 1.6mm, 1oz finished copper
Surface Treatment: ENIG
Min track space&width: 4 mil
Min mechanical drill size: 0.2mm
PCBA Lead time: 3-4 weeks
Packing: Anti-static bag and compartmental packing
Standard Warp: <0.75%
Share to:
1, Turnkey solution for IP PBX PCB Assembly, 1 oz, 8 Layers PCB Assembly EMS Service
2, PCB Assembly, PCB fabrication, electronic parts sourcing
3, Electronic Contract Manufacturing.
4, SMT&DIP&PTH&BGA Assembly
5, Quick turn PCBA prototype.
6, X-ray test, the Internal Circuit Test (ICT) , Functional Test (FCT)
7, Sample and small batch orders are accepted.
PCB Assembly Service
Customer offers: Gerber file and BOM files
Full-turnkey PCB Assembly : 1-60 Layers PCB manufacturing, Components supply, SMT assembly& THT assembly, PCBA functional testing.
PCBA Quality Assurance
1, Certifications: UL, SGS, ROHS, ISO9001: 2015, IATF16949: 2016.
2, 8 high speed SMT production lines and 4 through hole pcb assembly lines
3, Operators must undergo rigorous training before they begin working.
4,Equipments: solder paste printer in Jidakang, Koh Young 3D SPI solder paste detector, SMT Mounter in Samsung, Re-flow, Wave Soldering, Semi-auto DIP
5, PCBA Test: AOI inspection, X-Ray Inspection, Voltage Test, ICT test, and Functional Test.
6, Package Processed:
Passives, smallest size 0201(inch)
Micro QFP 0.38mm
Flip-chip, BGA, Connectors
BGA Ball Pitch=0.2mm
7, Every workstation in compliance with the standard operating procedure
8, Materials:FR-4, FPC, Metal, High TG,Halogen-Free, and 94-V0,etc.
9, Material Brand: KB, SHENGYI, and NANYA , etc.
PCBA Lead Time
Prototypes: with in10days if no parts issue.
Mass production: around 4 weeks if no parts issue.
